Industrial Pulse Baghouse Factory Dedusting Equipment Boiler Vacuum Cleaner

The detail information of product:

Source: China
Certifications: SGS ISO CE
Model Number: PPC64-8


Minimum order quantity: Negotiate
Price: Negitionable
Packing details: Plastic film inner packing, export special wooden box outside packing.
Delivery time: 30 days after receiving the payment
Terms of payment: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Ability to provide: 100 sets/sets per month
  • Description
  • Inquiry

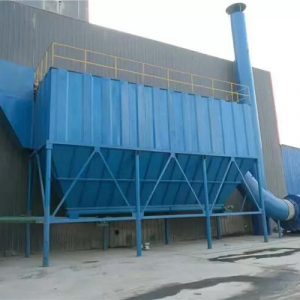

Industrial Pulse Baghouse Vacuum Cleaner / Boiler Vacuum Cleaner

Product Description

The single pulse bag filter machine digested and absorbed by my company similar product advantages at home and abroad, after improving the design of the small bag filter, the filter uses pulse blowing dust, good soot cleaning effect , high purification efficiency, large parameters and long life of the filter bag, the advantages of small maintenance workload, safe and reliable operation. It is widely used in metallurgy, materials construction, machinery, chemical industry, mines and other industrial and mining enterprises to filter the fibrous dust of industrial dust and recycle materials.

Technical parameters

TYPE DMC-32 DMC-48 DMC-64 DMC-80 DMC-96 DMC-112
Total filter area (m2) 24 36 48 60 72 84
Filter wind speed (m/min) 1.0-1.5
Air volume (m3/h) 1500-2400 2500-3500 3500-5000 4500-6000 5500-7000 6500-8500
Number of filter bags (pieces) 32 48 sixty four 80 96 112
Gas Consumption (m/min) 0.032 0.048 0.064 0.08 0.096 0.11
Inlet dust concentration (g/m3) 200
Concentration of dust released (mg/m3) 30
Injection pressure (MPa) 0.5-0.7
Under negative pressure (Pa) 5000
Device resistance (Pa) 1200
Number of pulse valves (pieces) 4 6 8 ten twelfth 14
Engine type Y90S-2 Y90L-2 Y100L-2 Y132S1-2 Y132S1-2 Y132S2-2
Power (KW) 1.5 2.2 3.0 5.5 5.5 7.5
Weight / kg) DMC (A) 1350 1620 1850 2360 2800 3200
DMC (B) 1220 1470 1670 2150 2540 2880

Product Principle:

  1. Smoke removal process:

The dust-filled gas enters the dust collector through the air inlet. The dust of the larger particles directly falls into the ash hopper. The gas containing the particulate dust passes through the filter bag. The dust is retained on the outer surface of the filter bag. , and the air is filtered and discharged out by the exhaust fan. Into the atmosphere.

  1. Trash removal process:

As the filter work continues, the dust particles attached to the outer surface of the filter bag will increase and the resistance of the dust collector to increase. The filter switch valve closes, the filter stops working and The back blown compressed air enters the filter. The dust on the outer surface of the filter bag is released, then the valve plate is turned open, the filter works again, and the dust is transferred to the filter element. next.The whole cleaning process alternates with each filter.
